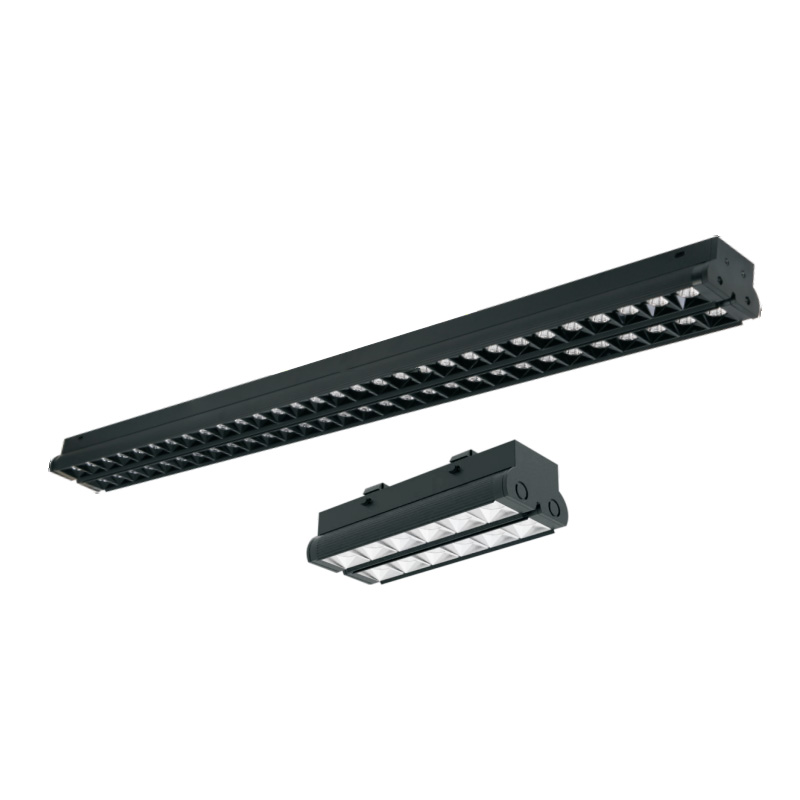

7 Wire Connection Led Linear Light

The 7 Wire Connection Led Linear Light is an innovative linear light that combines advanced technology, fashionable design and high-quality materials. The 7-wire LED linear light is cheap, durable, suitable for a variety of scenarios, and meets the needs of different users.

Send Inquiry

Product Description

The 7 Wire Connection Led Linear Light is available in a variety of colors and lighting effects. It is popular in the market and can meet the lighting needs of different consumers. The 7-wire LED linear light is made of high-quality materials, and the lamp body is made of high-quality aluminum alloy, which can maintain good appearance and performance in various harsh environments.

Structure and material:

Lamp body material: 7 Wire Connection Led Linear Light made of aluminum alloy, with clear lines, simple structure, beautiful appearance, firmness and corrosion resistance

Sealing and protection: Use high-temperature resistant silicone rubber sealing ring to ensure waterproof reliability.

Transparent material: 3MM thick high-strength tempered glass with high light transmittance and impact resistance.

Product specifications:

Voltage level: 12V, 24V, etc. can be selected according to the specific model.

Length selection: Provides a variety of standard lengths (such as 30CM, 60CM, 90CM, 120CM, etc.), and supports customized lengths.

Beam angle: 7 Wire Connection Led Linear Light can be adjusted according to lighting needs, common ones are 15°-60°, etc.

Technical Parameters

Item No.	ZMS-SP88176
Power	2* 25W/230W/236W
Flux	120-130Lm/W
PF	≥0.95
InputVoltage	220V~265V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	3 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	24°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 89.65 lm/W
Model		Peak light intensity (cd)	28426	S/MH(C0/180)	0.41
Nominal power (W)	65.93W	Lamp efficiency (%)	100.0	S/MH (C90/270)	0.44
Rated power supply voltage (V)	220	Total luminous flux (lm)	5910.7	η UP,DN(C0-180)	0.6,43.9
Rated luminous flux(lm)	5910.68	CIE classification	Direct	η UP,DN(C180-360)	0.5,55.1
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	1.1	CIBSE SHR NOM	0.00
Measured power supply voltage (V)	220	Downward luminous flux ratio (8)	98.9	CIBSE SHR MAX	1.00
