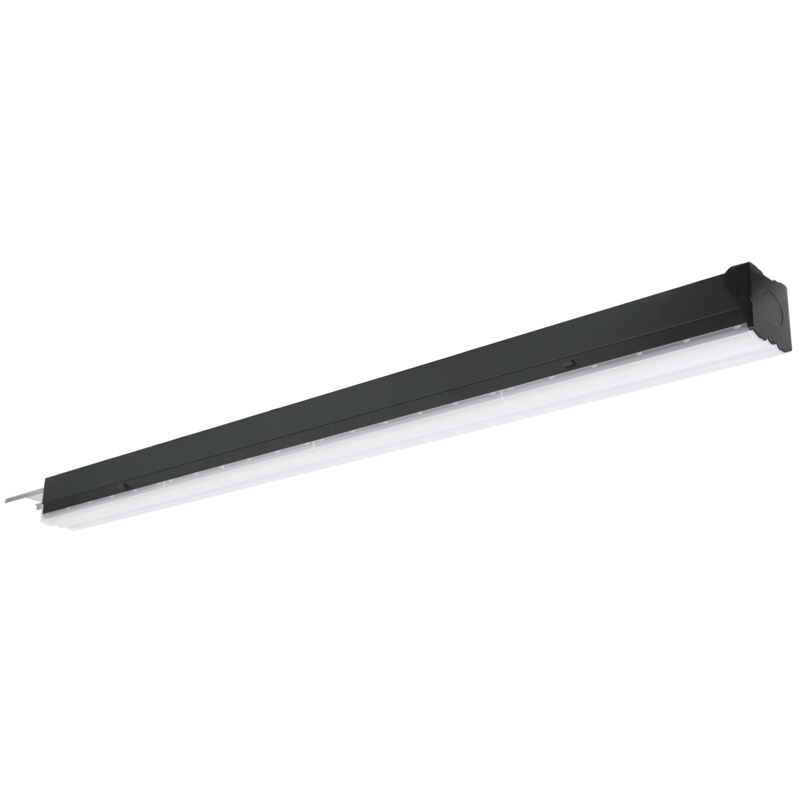

300 Meters Seamless Connection Led Linear Light

300 Meters Seamless Connection Led Linear Light from Zhenmingshi Factory is a high-quality lighting product with excellent lighting effects, durability and fashion. We also provide customized services. Application scenarios: commercial places, industrial plants, interior decoration

Send Inquiry

Product Description

The 300 Meters Seamless Connection Led Linear Light from Zhenmingshi uses a high-quality aluminum alloy shell with good heat dissipation performance. The internal circuit of Zhenmingshi also uses high-quality electronic components with stable performance and durability.

Product features:

Seamless connection technology: 300 Meters Seamless Connection Led Linear Light adopts unique track plug-in design to achieve seamless splicing between lamps, ensuring that there is no dark area in the entire light strip, improving the overall lighting effect

High-efficiency LED light source: built-in high-quality LED lamp beads, light efficiency up to 160lm/w, low power consumption, long service life

Various luminous angles: optically adopts lens design, providing a variety of luminous angle options to meet different lighting needs

Flexible installation design: Line, lamp, rail integrated design, easy installation, support continuous splicing of 150 meters, greatly saving installation time and comprehensive cost

Sturdy and beautiful shell: 300m seamless LED linear light shell is made of aluminum alloy, after electrostatic powder spraying treatment, high temperature resistance, corrosion resistance, and good heat dissipation performance

Technical parameters:

Luminous angle: multiple angles are optional to meet different lighting needs

Protection level: 300 Meters Seamless Connection Led Linear Light is dustproof and waterproof, adaptable to a variety of environments

Power: automatically adjusted according to the splicing length, low power of a single lamp, high overall system efficiency

Technical Parameters

Item No.	ZMS-XTD-AS881428
Power	25W/38W/44W
Flux	130-140Lm/W
PF	≥0.95
InputVoltage	220V~240V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	80
Quality	3 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	90°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

CIE Classification: Direct Type	Maximum Light Intensity Angle: C:270.0 G:1.0
Luminous flux of lamp: 6219.14 Im	Half-peak angle (50%Imax):99.18,102.02
Luminous efficiency: 132.519 Im/W	Lamp efficiency: 100.00%
Central light intensity: 2428.748cd	Upward luminous flux ratio: 0.0%
Maximum light intensity: 2470.032cd	Downward light flux ratio: 100.0%
Beam width (10%Imax): 152.02, 151.58
