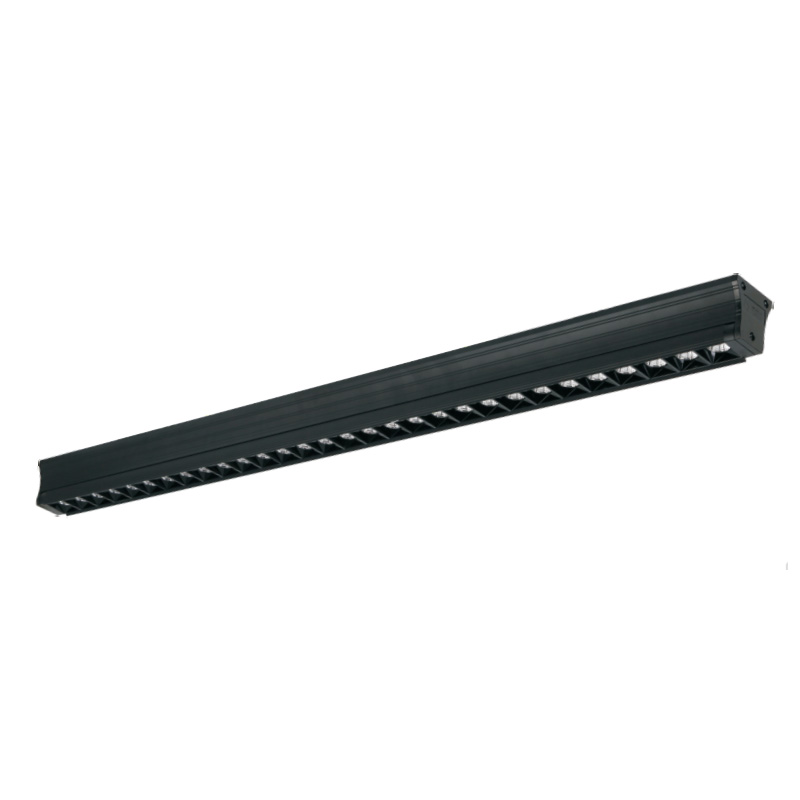

Two-way Lighting Seamless Docking Led Linear Lights

The Zhenmingshi Two-way Lighting Seamless Docking Led Linear Lights achieves two-way lighting while achieving seamless connection, bringing a high-quality experience to space lighting, and has a certain competitiveness in price. The body design of the Zhenmingshi two-way lighting seamless LED linear light supports two-way light emission, which can illuminate the space more widely.

Send Inquiry

Product Description

Zhenmingshi Two-way Lighting Seamless Docking Led Linear Lights use high-quality LED chips, combined with precise optical design to ensure uniform light distribution, no dark areas, and provide an elegant and comfortable lighting environment. Zhenmingshi two-way lighting seamless LED linear lights use advanced seamless docking technology, both sides of the lamp body can emit light, effectively expanding the lighting range.

Product features:

Structural design: The structural design of the lamp is simple and reasonable, easy to install and disassemble.

Main use: Indoor lighting, especially suitable for commercial spaces that require high brightness and uniform light distribution, such as supermarkets, exhibition halls, etc.

High color rendering index: The use of LED chips with high color rendering index can truly restore the color of objects, making the colors of the illuminated objects more vivid and clear.

Seamless docking technology: The unique seamless docking design allows multiple lamps to be perfectly connected during installation, achieving seamless transition and improving the overall aesthetics

Modular design: The Two-way Lighting Seamless Docking Led Linear Lights lamp adopts modular design, and each component is independent of each other, which is easy to disassemble and replace

Technical Parameters

Item No.	ZMS-DP88176
Power	25W/30W/36W
Flux	120-130Lm/W
PF	≥0.95
InputVoltage	220V~265V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	3 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	24°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 87.36 lm/W
Model		Peak light intensity (cd)	12212	S/MH(C0/180)	0.42
Nominal power (W)	30.52W	Lamp efficiency (%)	100.0	S/MH (C90/270)	0.37
Rated power supply voltage (V)	220	Total luminous flux (lm)	2665.9	η UP,DN(C0-180)	0.5,52.2
Rated luminous flux(lm)	2665.94	CIE classification	Direct	η UP,DN(C180-360)	0.5,46.8
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	1.0	CIBSE SHR NOM	0.00
Measured power supply voltage (V)	220	Downward luminous flux ratio (8)	99.0	CIBSE SHR MAX	1.00
